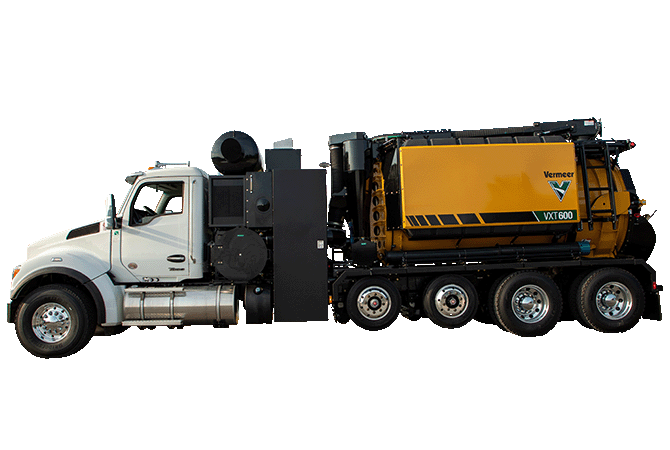

VXT600 Vacuum Truck

The VXT600 vacuum truck has undergone enhancements and is the next generation in vacuum excavation. Reduced weight and better weight distribution enables maximum loads. Quiet. Low height for easy accessibility. Simple controls.

The VXT600 model features an upgraded capacity with 12 yd³ (11 m³) debris capacity and 1,200 gal (4,542 L) of water. This enhanced truck vac has reduced weight and optimized weight distribution that enables maximum load. This truck vac features a 6,400-cfm (181.2-m³/min) Jurop blower that is quiet in the rear working area and can limit disturbance. This unit’s overall height of 12.25 ft (3.73 m) allows for easier maneuvering under residential trees, power lines and bridges. The rear door has a full open cam-over door which provides a simple and reliable rear door scaling method.

Features and benefits

⌄ Air Compressor

Availability

Optional

⌄ Boom

Remote Control	Full function wireless
Reach	23 ft (7 m)
Hose diameter	8 in (3.14 cm)

⌄ Control panel

Controls	Full-function wireless remote (optional belly pack or handheld)
Gauges	Electronic display with 7-in LCD screen

⌄ Options

Hot box	Dynablast - 420K BTU
Cold weather options	Heated cabinets, water lines and valves
Vibrator	Spoil tank vibrator
Onboard air compressor	180 cfm (5.10 cu-m/min), 110 psi (7.6 bar)
Water Pump	19.4 gpm (72.7 L/min)

⌄ Spoil Tank

Spoil tank capacity	12 cu-yd (11 cu-m)
Door type	Cam-over hydraulic
Tank Lift Type	Telescopic cylinder

⌄ Truck

Compatibility	12-cu-yd spoil tank option
Length	33.4 ft (10 m)
Width	98 in (249 cm)
Height	12.25 ft (4 m) with boom
Empty weight	40,000 lb (18,144 kg) estimated
Gross Vehicle Weight Rating (GVWR)	86,000 lb (39,009 kg)
Truck model	Kenworth T880
Engine model	MX-13
Horsepower	510 hp (380 kW)
Transmission	Allison 4500

⌄ Truck - Option two

Compatibility	12-cu-yd spoil tank option
Length	33.4 ft (10 m)
Width	98 in (10 m)
Empty weight	40,000 lb (18,144 kg) estimated
Height	13.25 ft (4 m) with boom
Gross Vehicle Weight Rating (GVWR)	86,000 lb (39,009 kg)
Truck model	Mack Granite
Engine model	MP8
Horsepower	505 hp (377 kW)
Transmission	Allison 4500

⌄ Vacuum

Type of Filters	2-micron washable filter
Hose length	23 ft (7 m)
Air flow	6400 cfm (181.2 cubic m/min)
Vacuum blower type	Jurop
Vacuum	27 inHg (.91 bar)

⌄ Water tank

Number of Tanks	2
High Pressure Pump	3000 psi (206.8 bar)
High pressure hose length	100 ft (30.5 m)
Low Water Shutoff	Electronic sensor indicators
Water capacity	1200 gal (4542 L)
High pressure pump flow rate	10 gpm (37.9 L/min), optional 19.4 gpm (72.7 L/min)
