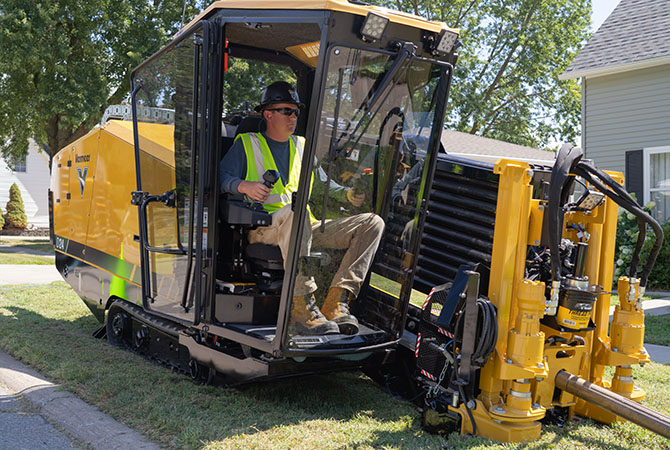

D24 HDD




  • Easier drilling for crews of various skill levels with an automated rod exchange and open-side vise.
  • Help increase uptime with on-rig diagnostics and bolstered reliability from redesigned components.
  • Go further and bore more than its predecessor, the D23x30 S3, with an optional 480 ft (150 m) of rod and components designed to drill in tough ground conditions.

Features and benefits

⌄ Drill Pipe
Drill Rod Thread#600
Thread TypeFirestick
Rod Diameter2.375 in (6.03 cm)
Joint Outside Diameter2.625 in (6.67 cm)
⌄ Drill Pipe Option Two
Drill Rod Thread#600
Thread TypeFirestick
Rod Diameter2.375 in (6.03 cm)
Joint Outside Diameter2.625 in (6.67 cm)
Bend Radius108 ft (33 m)
⌄ Drilling Fluid System Option One
BrandFMC
⌄ Engine
Fuel TypeUltra low sulfur diesel
Make and ModelCAT C3.6
AspirationTurbo
Maximum Operating Angle (Left/Right)*35 deg
Maximum Operating Angle (Fore/Aft)*35 deg
Emissions ratingT4F/SV
Cooling MethodLiquid
⌄ Features
Stakedown SystemStandard
Breakout SystemSliding, open side
Flow IndicatorStandard
Drilling LightsStandard
Strike AlertStandard
Remote LockoutStandard
Operator PresenceStandard
⌄ Operational
Automated Rod LoaderYes, now with Automated Rod Exchange
Noise Level at Operator's Ear88 dB(A)
Guaranteed sound power (CE-rating)100 dB(A)
